Quick Details
- Standard or Nonstandard: Standard
- Structure: Control
- Pressure: Low Pressure
- Power: Hydraulic
- Material: Brass
- Temperature of Media: -20℃~90℃ (Ice free state)
- Media: Water, Circulating water, drinking water
- Port Size: Standard
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: BH-03
- Brand Name: Chunhui
- Application: For gas boiler
- Keyword: valve hydraulic
- Synchronous motor: AC220V(-15%~+10%)
- Nominal power: 2.5W±0.2W
- Stroke: 7.5mm
- Nominal voltage of sensor: DC5V
- Measurement range: 2.5~16L/min
- Flow-pulse character: F=13Q-6.5 or F=8.1Q-3
- Limit flow range: 7~16L/min under 2bar, ±10%
- Ambient temperature: -20℃~90℃ (Ice free state)
Packaging & Delivery
| Packaging Details | valve hydraulic
carton box, wooden package |
|---|---|
| Delivery Time | Shipped in 15 days after payment |

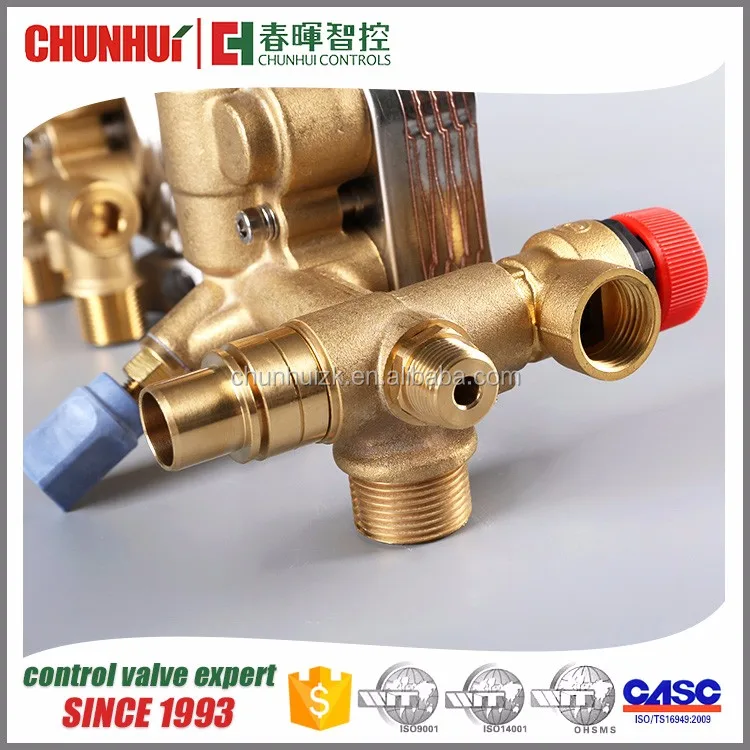

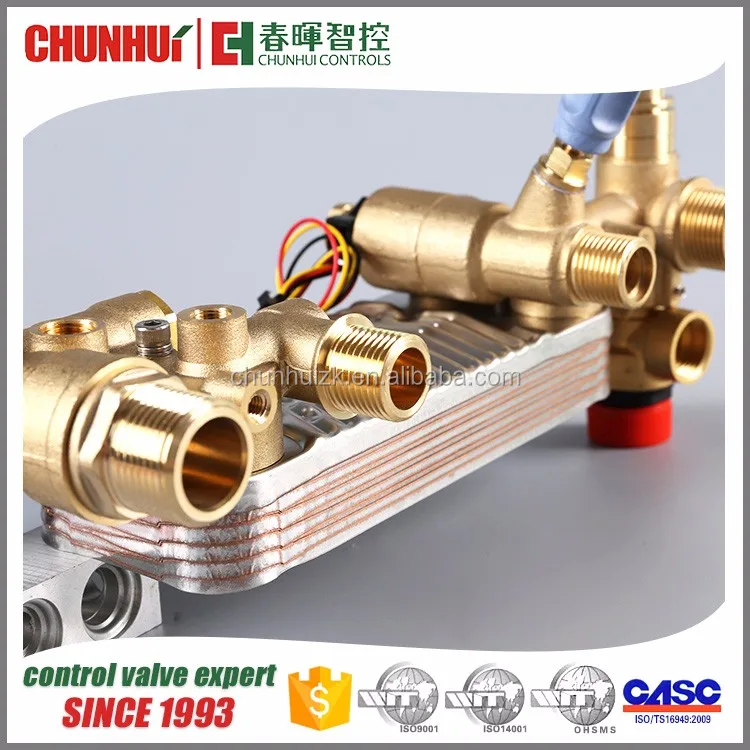

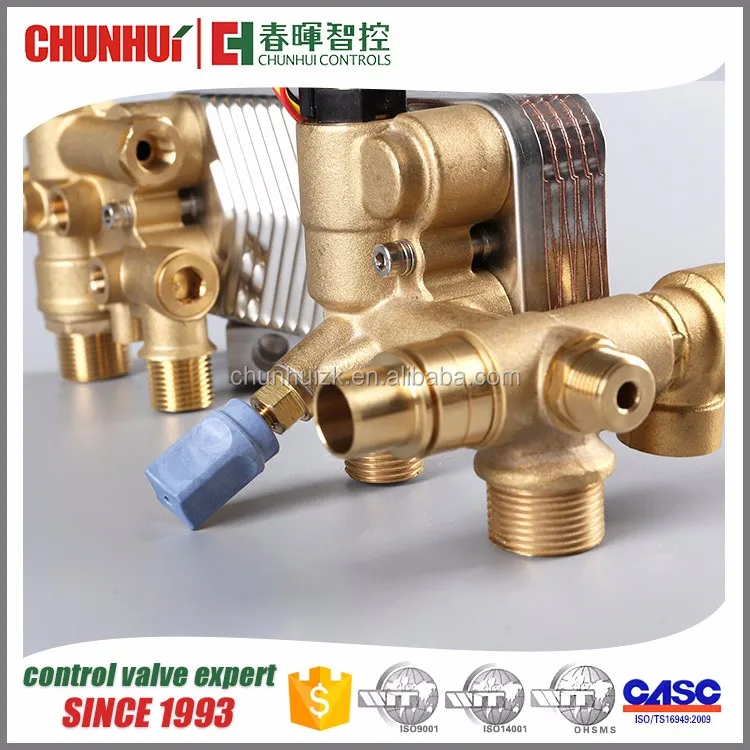

unique flow control valve hydraulic, valve hydraulic for gas boiler
| Model:BH-03 | |
| Synchronous motor | AC220(-15%~+10%), Nominal power: 2.5W±0.2W, stroke:7.5mm |
| Max. working pressure | Heating cycle: 0.3MPa, bathing cycle:0.7MPa |
| By pass performance | ΔP=0.04MPa, Q≤50L/h; ΔP=0.055MPa, Q≥180L/h; or according to customer requirement |
| Nominal voltage of sensor | DC5V |
| Measurement range | 2.5~16L/min |
| accuracy | 2.5~3L/min ±5Hz;3~16L/min±10% |
| Flow—pulse character | F=13Q-6.5 or F=8.1Q-3 |
| Limit flow range | 7~18L/min at 2bar, ±10% |
| media | Circulating water, drinking water |
| Ambient temperature | -20℃~90℃ (Ice free state) |
| Other description | |
| Use occasions | Used for gas boiler |
| Product features | High quality, cost-effective |
| Cooperation case | BOSCH, Vaillant, Demirdokum |
