ISO9001 wholesale hydraulic flow valve, types of hydraulic valves

FOB Reference Price:Get Latest Price
  • 1 - 499 Pieces
    US $10.30
  • >=500 Pieces
    US $8.95
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Low Pressure
Power:
Hydraulic
Material:
Brass
Temperature of Media:
-20℃~90℃ (Ice free state)
Media:
Water, Circulating water, drinking water
Port Size:
Standard
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
TG-04
Brand Name:
Chunhui
Application:
For gas boiler
Keyword:
types of hydraulic valves
Nominal voltage of sensor:
DC5V
Measurement range:
2.5~16L/min
Flow-pulse character:
F=8.1Q-3
Limit flow range:
7~18L/min under 2bar, ±10%
Ambient temperature:
-20℃~90℃ (Ice free state)
Supply Ability
Supply Ability:
40000 Piece/Pieces per Month types of hydraulic valves
Packaging & Delivery
Packaging Details
types of hydraulic valves
carton box, wooden package
Port
Shanghai or Ningbo
Lead Time :
Shipped in 15 days after payment

home>>product categories>>hot product

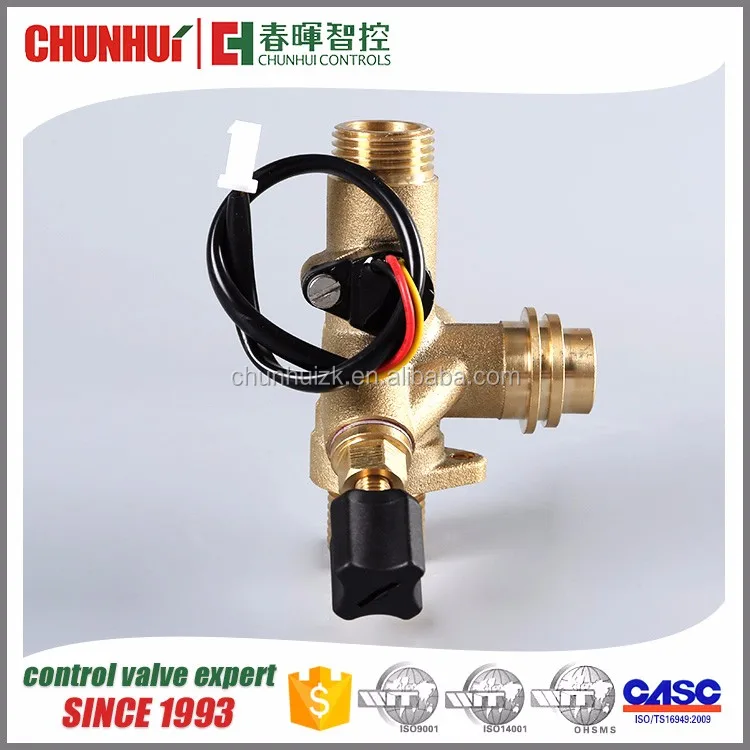

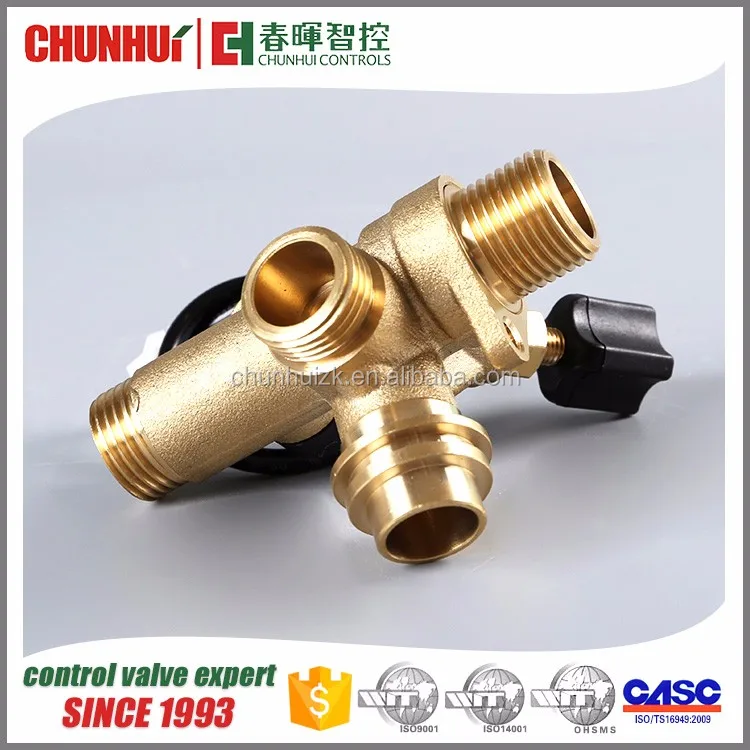

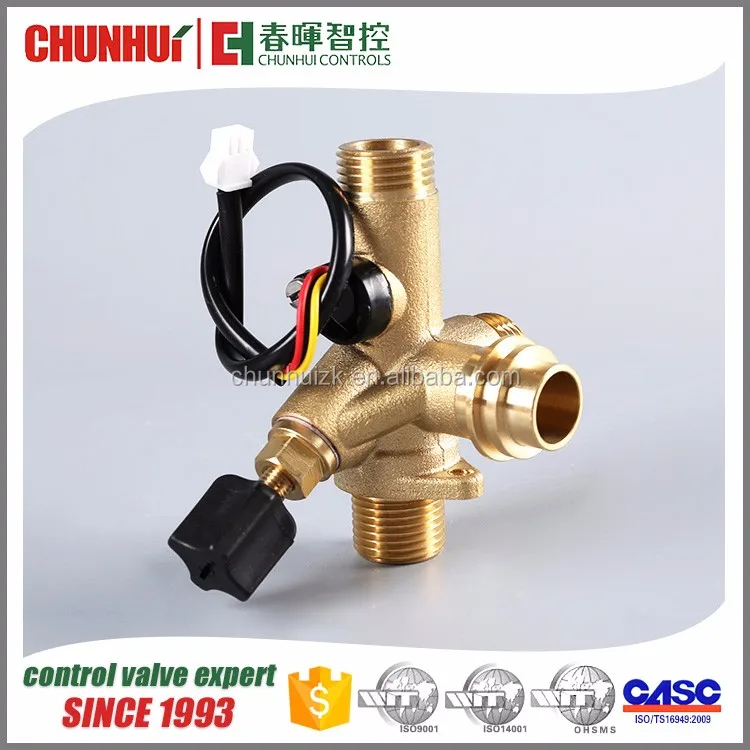

ISO9001 wholesale hydraulic flow valve, types of hydraulic valves




Model:TG-04
Max. working pressureHeating cycle: 0.3MPa, bathing cycle:0.7MPa
By pass performance

ΔP=0.04MPa, Q≤50L/h; ΔP=0.055MPa, Q≥180L/h;

or according to customer requirement

Nominal voltage of sensorDC5V
Measurement range2.5~16L/min
accuracy2.5~3L/min ±5Hz;3~16L/min±10%
Flow—pulse characterF=8.1Q-3
Limit flow range7~18L/min, under 2bar, ±10%
MediaCirculating water, drinking water
Ambient temperature-20℃~90℃ (Ice free state)
Other description
Use occasionsUsed for gas boiler
Product featuresHigh quality, cost-effective
Cooperation caseBOSCH, Vaillant, Demirdokum
